Boom Sprayer

Boom sprayer is used to spray insecticides, pesticides, fungicides and nutrients on crops. They are manufactured in such a way that they easily attach to tractors of any size with category I hitch. It is capable of spraying large and small fields alike.



Specifications

Horse Power 50 hp & above
Boom Width 33, 43, 48, 53, feet
Spray Width 35, 45, 50, 55 feet
Spray Tank Fiber Glass
Tank Capacity 500/600 liters with Agitator

Pressure control system diaphragm
pressure control chest with glycerin
filled gauge


Main frame Made of MS pipe
Boom frame Made of MS pipe
Spray pipes S.S pipes
Nozzle tips filter Tips With Anti Drip
Pump 3 plungers
Plunger Size 42 mm
Discharge rate 90 liter per minute
Strainers 1 Tank Mouth Filter 1 Tank bottom Filter 3 Extra Filters on supply lines

Pipes High Pressure Rubber Pipes
Pipe High Pressure Nylon Synthetic
Drive P.T.O Driven








Enquire us

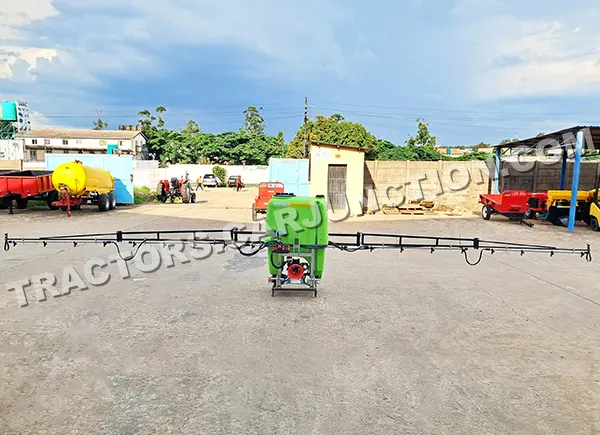

Boom Sprayer Image 0

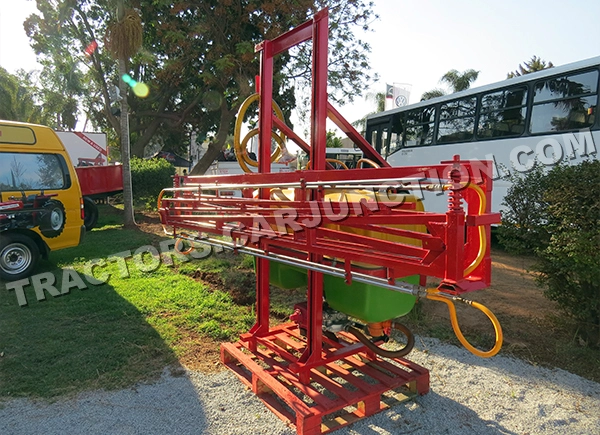

Boom Sprayer Image 1

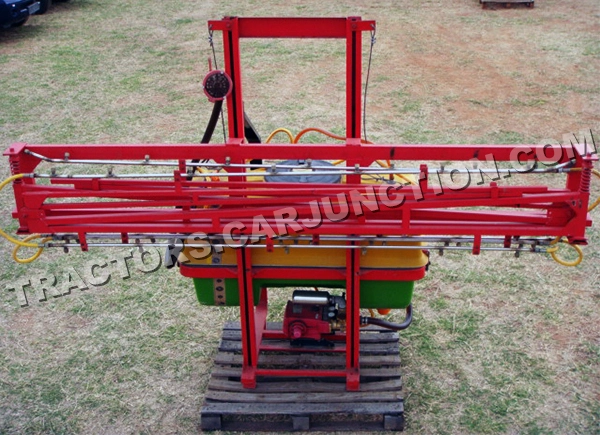

Boom Sprayer Image 2

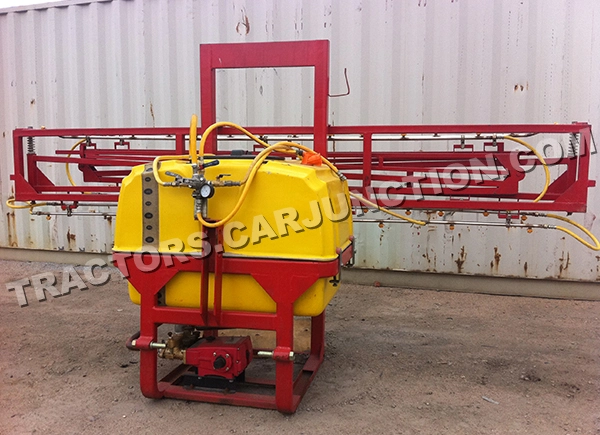

Boom Sprayer Image 3
