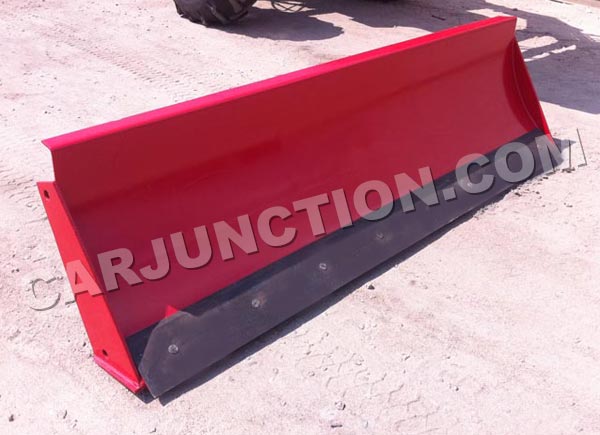

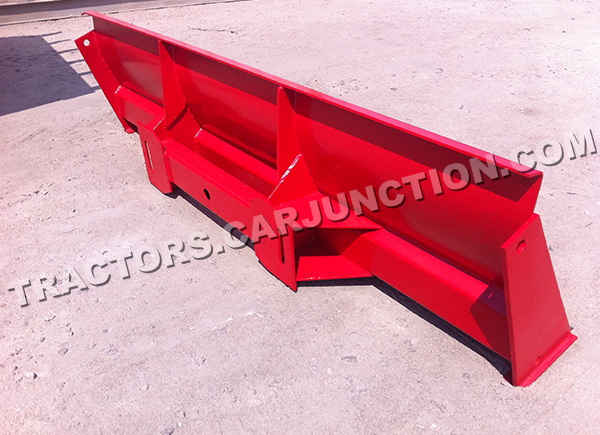

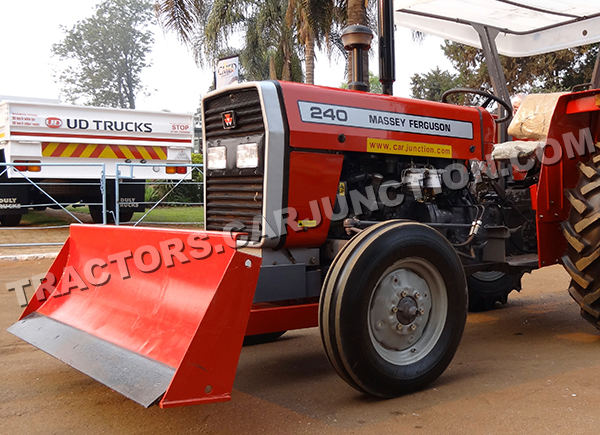

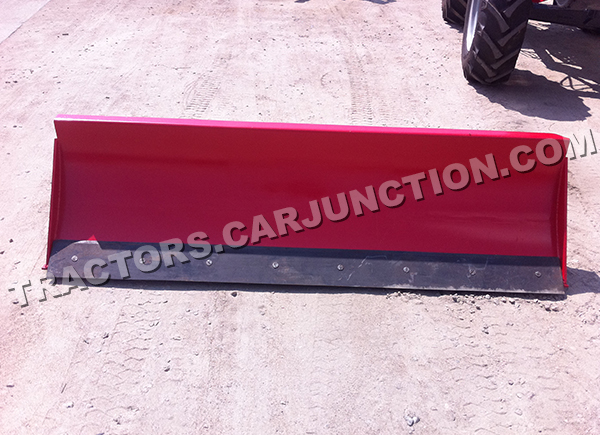

Front blade is attached to compact tractors but they are much less common than rear blades. They can handle many different tasks ranging from transporting material, sorting a path or doing away with snow in the winter. They can be used for back-dragging only if the tractor is driven in reverse.
Specifications
| 1. |
Power dozer to fit |
MF-240, 260, 375, 385 tractors |
| 2. |
Blade |
Model MT-08/1 = 6` x 22" - (Single ram) |
| 3. |
Cutting Edge |
152mm (6") x 12.7mm (1/2") section high carbon alloy steel reversible and replaceable. |
| 4. |
Hydraulic Ram |
Heavy duty, double acting |
| 5. |
Control Valve |
Open center double acting spool valve |
| 6. |
Blade Movement |
Maximum lift 533 mm (21"). Maximum depth below ground 102mm (4"). |
|
