Potato Planter

Potato Planter is used for planting of potato crop. Chain system cups are used. The machine is mounted on a three point linkage of a tractor. There is increased production because of the introduction of fertilizer box system.

1) Adjustable depth and planting spacing as desired by farmer.

2) No additional labor is required by placing missed seeds in cups in automatic planter. Time and labor saving as compared to traditional method.

3) It sows in rows.

4) Easy  to operate and maintain.

Specifications: Two Rows Four Rows
Horse Power Required 50 hp & above 85 hp & above
Seed Capacity 240 kg 600 kg
Fertilizer Box 150 kg 300 kg
Distribution Through Silver Aluminum 4 Nos. 8 Nos.
Fluted Wheel
Adjustment Through Adjuster
Distribution System
Speed 1 1440 kg 2800 kg
Speed 2 1680 kg 3360 kg
Speed 3 1920 kg 3840 kg
Seed Rate Gear Box
Double Conveyer System Seed Holder 96 Nos. Cups 192 Nos. Cups
Line to Line Distance 28, 29, 30, inches 28, 29, 30, inches
Seed to Seed Spacing 6 inches 6 inches




Enquire us

Potato Planter Image 0

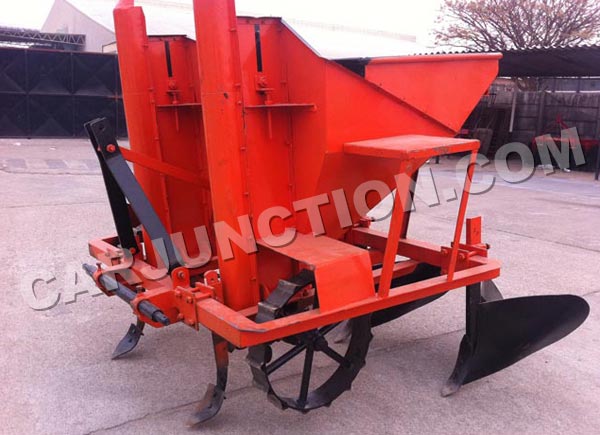

Potato Planter Image 1

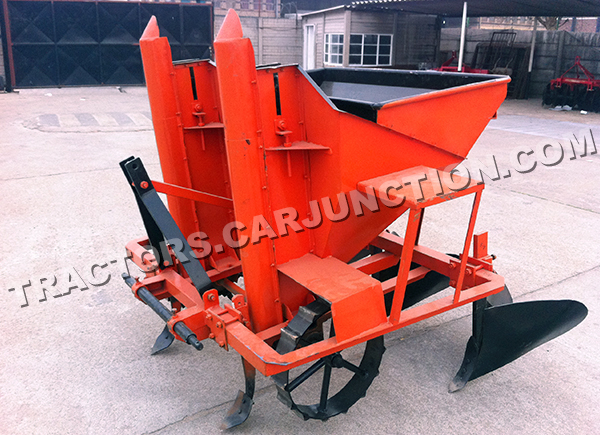

Potato Planter Image 2

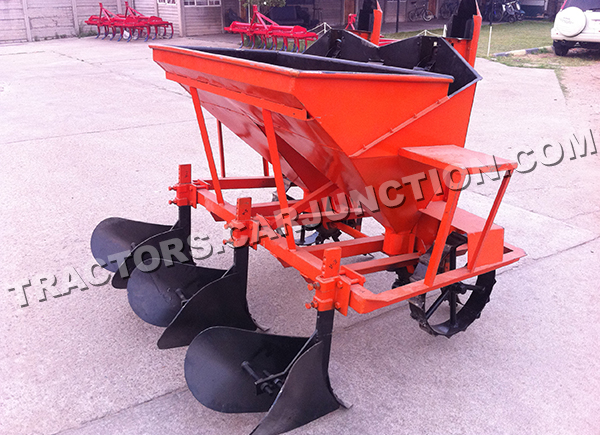

Potato Planter Image 3
