Brand New Disc Plough

Disc Plough Used for deep ploughing in root-infested, sticky, stony and hard soils. Mixes remains of corps and weeds throughout the depth of ploughing, hence ideal for rains-fed areas for checking soil erosion by water and wind.

  • Spring loaded floating rear furrow wheel controls the side drafts to ensure straight work and ease of handling by smaller tractor.

  • Re-greaseable Taper Roller Bearings in disc hubs.

  • Disc angle adjustable to vary the penetration with varying soil conditions.

  • Cat I & II linkage.

  • Disc Scrapers are adjustable to ensure that the Discs remain clean in all conditions.



Disc Plough Specifications

Frame Type

Tubular Seamless Steel Pipe

Number Of Furrow

2, 2+1, 3, 3+1

Furrow Width

254 mm

Max. working depth

300 mm

Longitudinal clearance

522 mm

Furrow wheel dia

508 mm

Plain discs

660 mm - inside or outside bevel

Bearings

taper roller

Weight

360 kg

Tractor Compatibility

50 to 85 hp

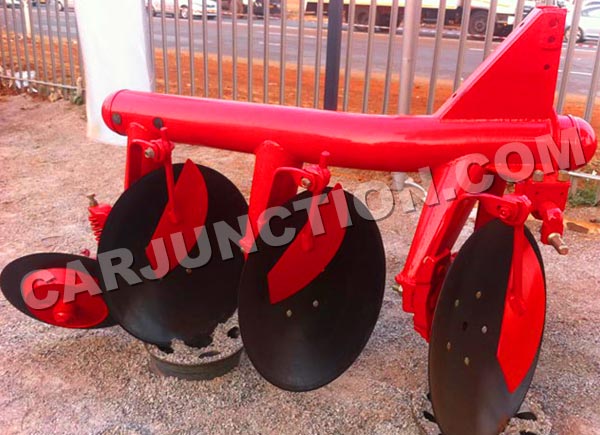

Disc Plough Image 0

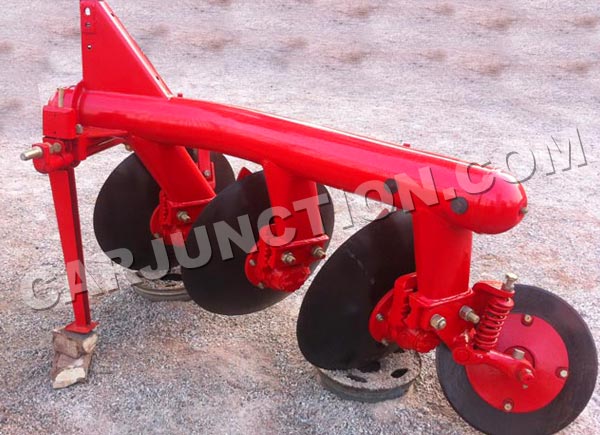

Disc Plough Image 1

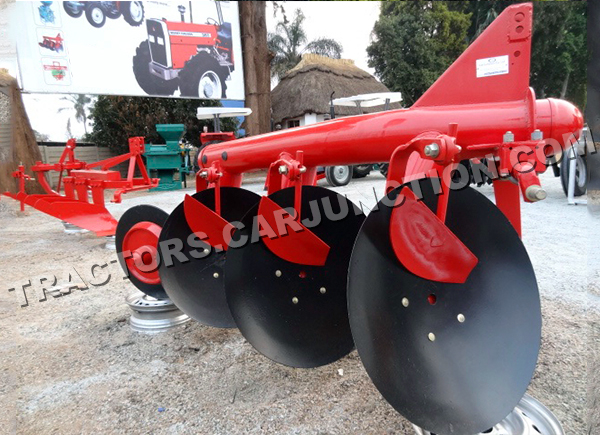

Disc Plough Image 2
Disc Plough Image 3
