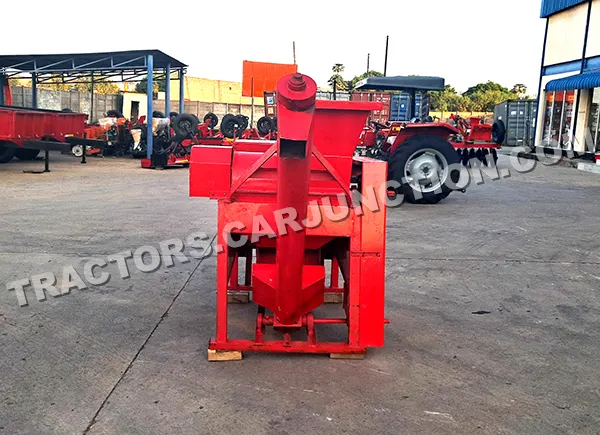

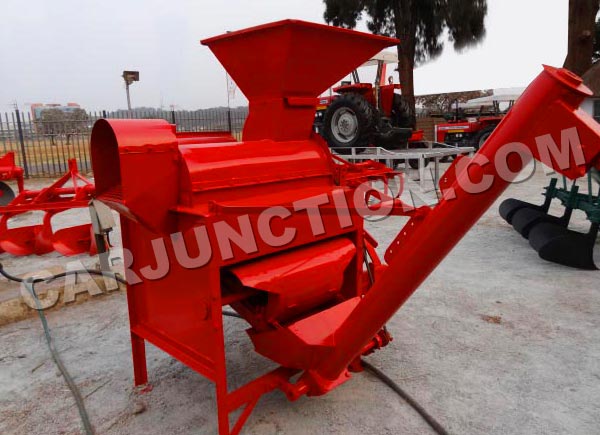

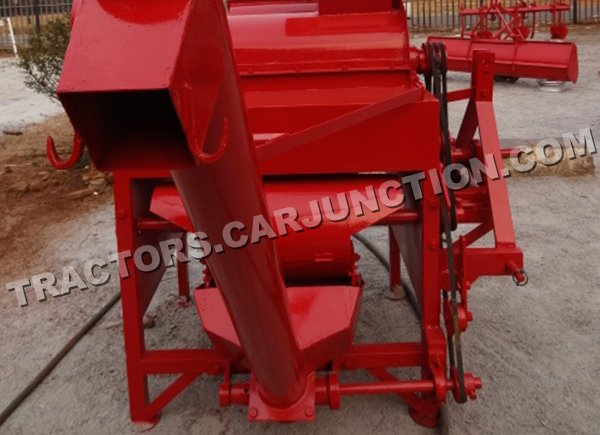

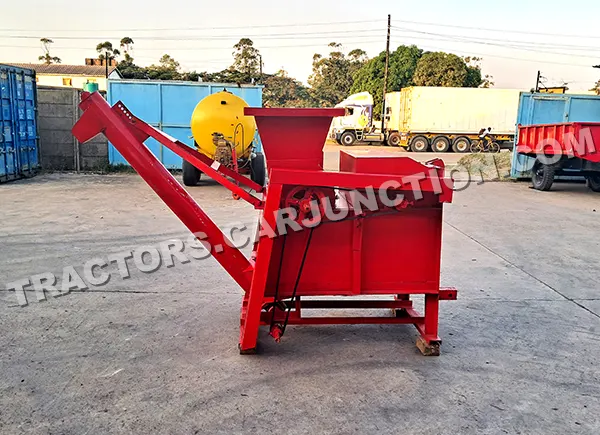

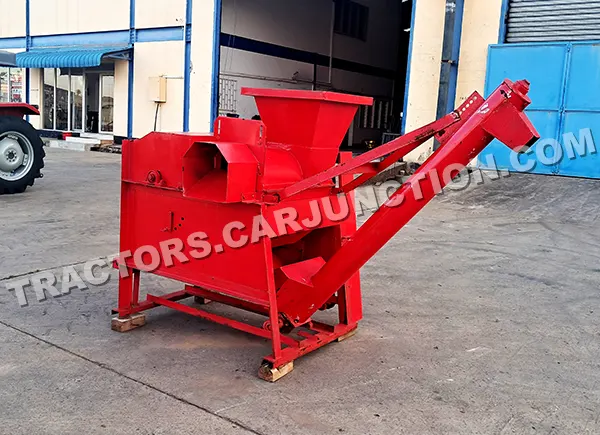

Maize Sheller is another important tractor implement. Shelling is done by beating and shearing action of the cast iron present in the rotating shelling disc. The rotation of the shelling disc throws out the empty cob while the shelled kernels are passed through an air stream. The cleaned kernels are then collected at the bottom.
Main Frame |
M.S. Angle Bar & Channel |
Shelling Drum |
Iron Sheet & M.S. Round |
Shaft |
M.S. Steel |
Belts |
V-belts |
Other materials |
M.S. round & stripe bars |
Specifications:
Power Source |
30-70 HP tractor |
Shelling Capacity |
1500 - 1600 Kg/hr. (average) |
No. of Blowers |
1 |
Type |
Tractor Hydraulic Mounted |
Driven |
P.T.O shaft Driven |
Overall length |
51 inches |
Overall height |
63 inches |
Overall width |
59 inches |
|
