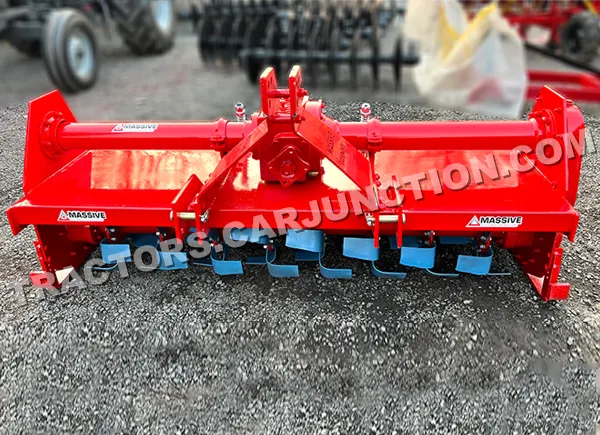

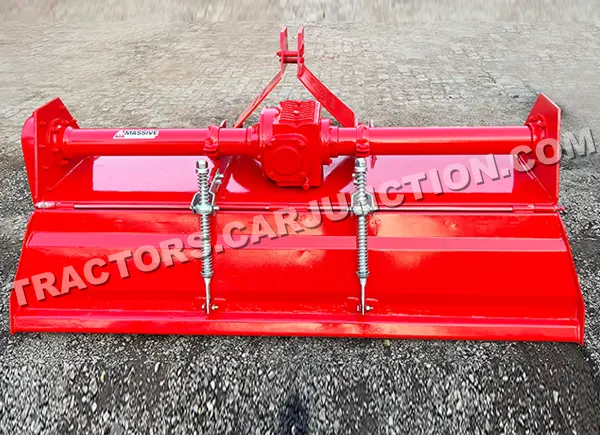

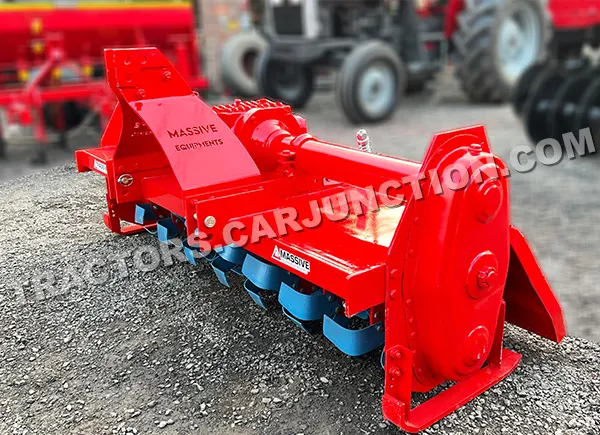

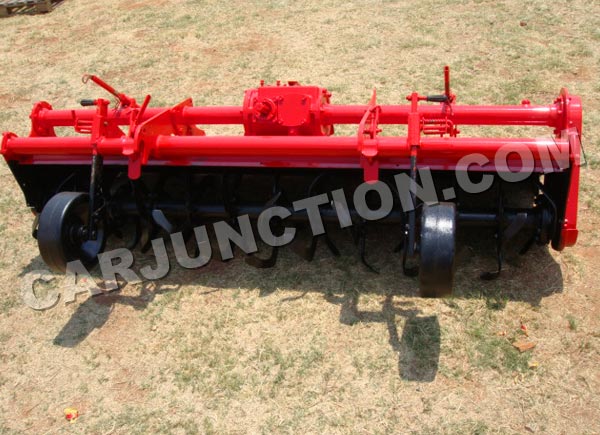

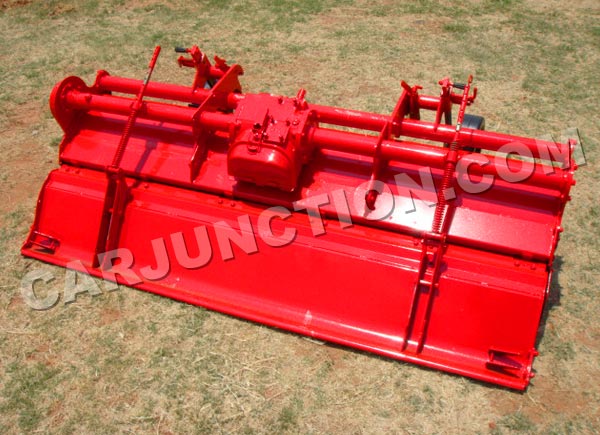

Rotary Tiller is a versatile agricultural implement used for soil preparation, weed control, and seedbed preparation. Here are some quality details of a Rotary Tiller.
- High-speed rotation (up to 240 RPM) for efficient soil cultivation and weed control.
- Adjustable rotation speed to suit various soil types and conditions
- Robust Gear Box Built with high-strength materials to withstand heavy loads and harsh conditions. Components are precision-machined for smooth operation and minimal wear. High-strength pinions , Precision-cut gears , Heavy-duty bearings, Easy Oil bath lubrication System, and Sealed to prevent contamination and reduce maintenance.
- Gears are designed for quiet operation, reducing noise pollution. This Ensures efficient power transfer and reduced vibration. Gear ratio optimized for optimal power and speed.
- Easy-to-use depth control system for precise soil cultivation. Adjustable depth range to suit various soil types and conditions
- Sturdy steel construction for strength and durability. Powder-coated or painted finish for corrosion resistance
- High-strength, heat-treated tines for maximum durability and soil penetration
Technical Specifications:
| Specifications |
30 - 45 Hp |
45 - 65 Hp |
65 - 80 Hp |
80 - 100 Hp |
| Working Width (mm) |
220 |
1550 |
1800 |
2050 |
| Working Depth (mm) |
1300 |
| No. of Blades / Cutters |
30 |
36 |
42 |
48 |
| Blade Type |
L Shape, Hardened Material |
| Side Drive |
Gear Train / Pinon Type |
| Rotor Speed @ 540 rpm |
213 |
| Safety Cluth |
Between UU Shaft and Gearbox, This is Adjustable |
| Mounting |
Standard 3 Point with Cat-I pins. Mounted Centrally Behind the tractor |
