Brand New Tine Tiller For Sale

Tine Tillers, crucial for cultivation, seed bed prep, and weeding, are tractor-mounted using Category I or II three-point hitch pins. Their flexing tines efficiently break up soil lumps, penetrating deeply for effective soil preparation.


Product features:

  • Ideal for general cultivation, weeding, pasture renovation and preparing seedbeds.
  • The tiller is available in 4 widths: 9,11, 13 and 15 tines. The tiller is fully mounted on the tractor by means of Category I or II three point hitch pins.
  • The spring-loaded tine swing back under break-away pressure of 163-kg: pass over the obstruction and return to the working position without affecting the working depth of  the implement.
  • The continual flexing action of the tines shatters the soil breaking up the clods.
  • The tiller is fitted with 51 mm reversible shovels which are desig
  • ned for deep penetration.
  • A working depth upto 229 mm is possible in most soils.



  1. Versatility: Suitable for various tasks like cultivation, weeding, and seedbed preparation.
  2. Adjustable: Available in four widths to accommodate different field sizes.
  3. Easy Mounting: Quickly attachable to tractors using standard hitch pins.
  4. Obstacle Handling: Spring-loaded tines pass over obstacles without disruption.
  5. Soil Preparation: Breaks up clods and improves soil structure.
  6. Deep Penetration: Reversible shovels ensure thorough soil mixing.
  7. Adjustable Depth: Can work up to 229 mm depth, adaptable to different soil types and crops.


Technical Specifications

Specifications 9 Tine 11 Tine 13 Tine
Discs 2 3 4
Linkage category I I & II I & II
Frame Round Steel Torsion Tubes Round Steel Torsion Tubes Round Steel Torsion Tubes
Overall Width 2180 mm 2900 mm 2900 mm
Overall Length 813 mm 813 mm 813 mm
Tine Spacing 50-60HP 60-75HP 75+ HP
Overall Height 178 mm 229 mm 229 mm
  229 mm 254 mm 254 mm
Cultivating Width                     1.02 m                                        1.02 m                                        1.02 m
Max. Working Depth 229 mm 229 mm 229 mm
Weight 209 kgs 236 kgs 266 kgs
Type Of Tines Shovels Spring Loaded Spring Loaded Spring Loaded
Tractor Compatibility 25 – 36 HP 35 – 55 HP 60 – 85 HP

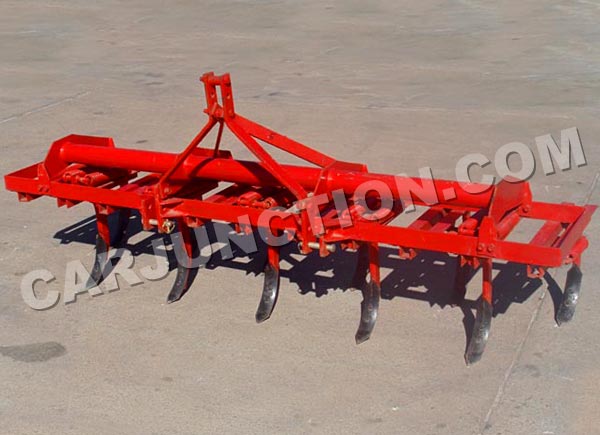

Tine Tiller Image 0

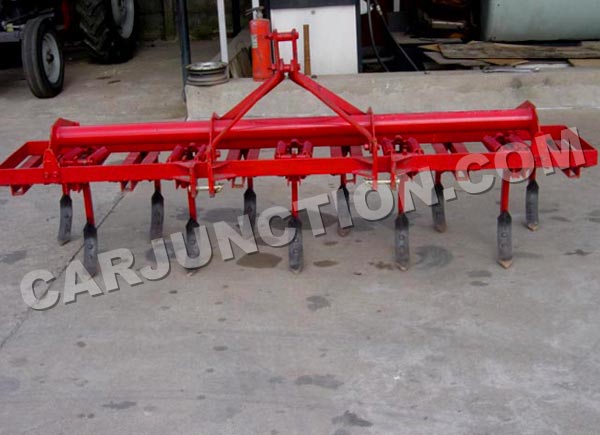

Tine Tiller Image 1

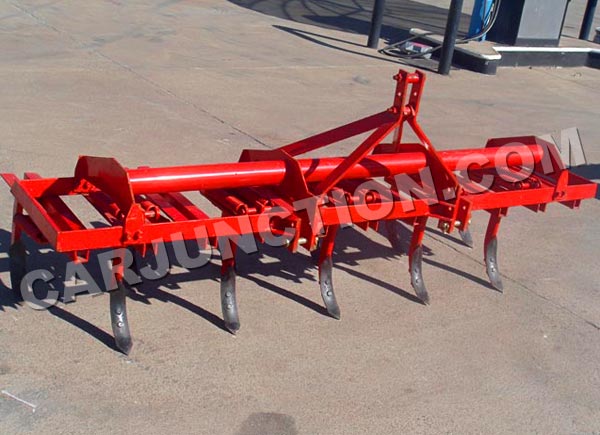

Tine Tiller Image 2

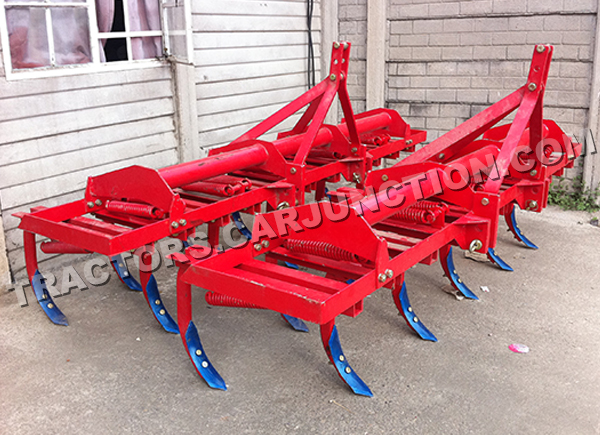

Tine Tiller Image 3
