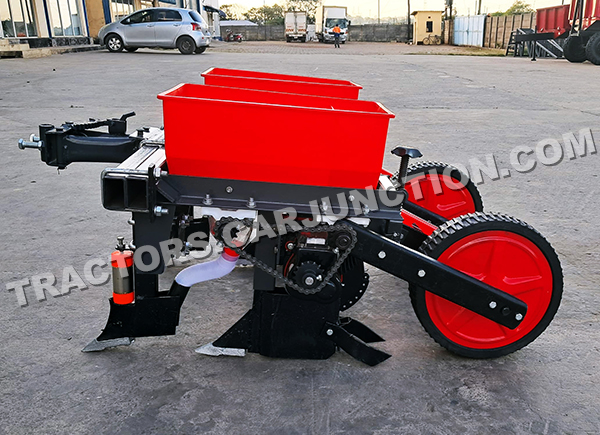

This seeder can seed granular seeds such as peanut, corn and beans. Fertilization and sowing can be done at the same time. The seed quantity, fertilizer quantity and sowing depth can all be adjusted. It consists of a seed box fixed to the frame, a seeding shaft, a metering box and a plowshare fixed under the frame. The seeding machine is integrated with the traction tractor of the walking tractor. It can be lifted and lowered flexibly. It has the advantages of simple structure, low cost and convenient operation.
Supporting power
|
8-20 HP walking tractor
|
Overall dimension
|
1150*1000*680mm
|
Overall weight
|
85kg
|
Sowing depth
|
10-100mm
|
Size of fertilizer box
|
340*250*200mm
|
Size of seed box
|
110*350*200mm
|
Plant spacing
|
180-340mm
|
Line spacing
|
300-700mm
|
