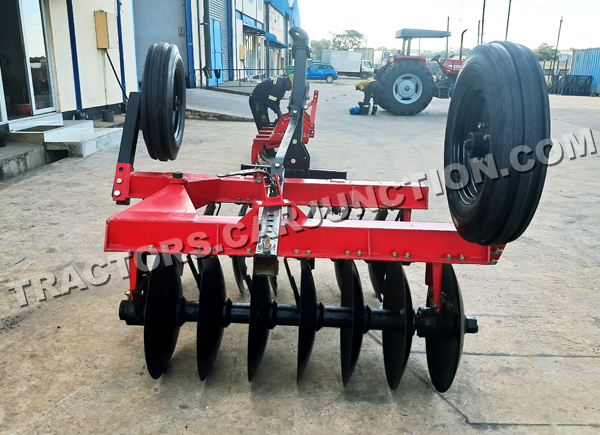

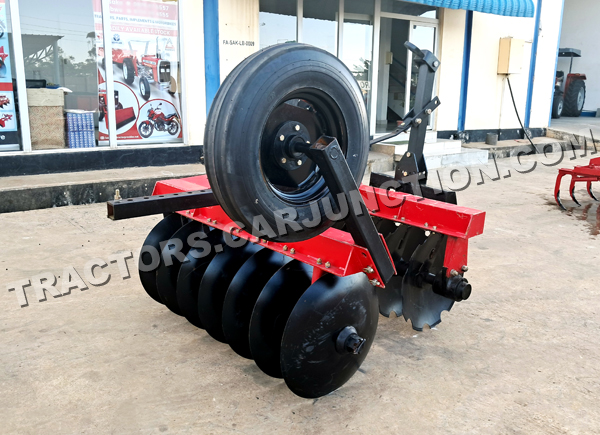

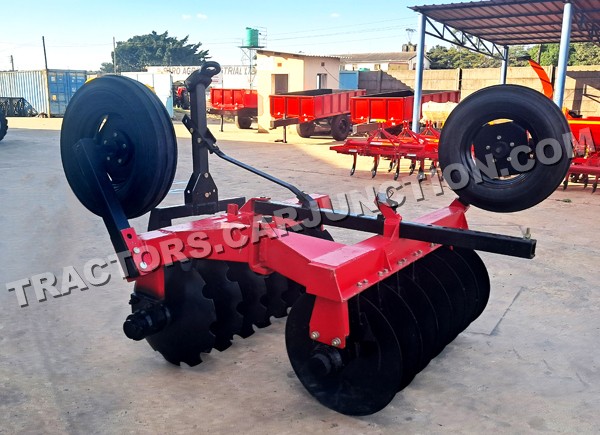

The Offset Disc Harrow has a heavier weight per Disc and thus has the penetration ability to break down large clods normally left after disc ploughing or Chisel Ploughing in hard grounds. It is of robust construction, used as mounted or trailed and ideal for chopping and mixing of stubbles and crop residues in the soils.
The Disc Harrow prepares the seed-bed leaving the soil in granular form which is the most suitable structure for plant growth. It aerates the soil, helps to conserve moisture for longer
periods and eradicate weeds.
In sandy loam soils, this implement can also be used as primary tillage implement. The depth of ploughing is regulated simply by manipulating the offset angles of the gauges. By removing simply a pin, the mounted position can be converted into trailed position and vice versa.
Advantage:
-
Superior Penetration: Heavy weight per disc breaks down large clods effectively, even in hard ground.
-
Robust Construction: Built tough for mounted or trailed use, ensuring durability in challenging conditions.
-
Stubble Management: Chops and mixes crop residues, aiding decomposition and soil incorporation.
-
Seedbed Preparation: Leaves soil in granular form, optimal for plant growth and seedling establishment.
-
Soil Health Benefits: Enhances soil aeration, conserves moisture, and helps control weeds, promoting healthier crops.
-
Versatility: Can serve as a primary tillage implement in sandy loam soils, with adjustable ploughing depth.
-
Easy Conversion: Simple transition between mounted and trailed positions for added flexibility in operation.
Technical Specifications
| Specifications |
14 Discs |
16 Discs |
| No of Discs |
14 Discs |
16 Discs |
| Disc Size |
61 cm (24") |
61 cm (24") |
| Weight |
524 Kgs |
549 Kgs |
| Working Width |
1.40 m |
1.50 m |
| Tractor Compatibility |
50 hp |
60 - 85 hp |
| Disc Diameter |
560 mm |
560 mm |
| Disc Thickness |
4.5 mm |
4.5 mm |
| No of Bearing |
4 |
4 |
