Fodder Chopper with Hammer Mill (Engine)

Fodder Chopper have high resistance and durability and, besides that, they have excellent productivity. They combine quality, strength, endurance and accuracy in the processing of various crops. Ideal for farmers who need to feed their livestock on a daily basis, JF fodder processors are indicated for animal fodder production, such as cattle, poultry and pigs, among others.

Its powerful and quick rotor has high resistant hammers and knives that grind grains and maize cobs for producing concentrated rations besides cutting grass, sugar cane and roots for green fodder preparation.

Application: Grind dry corn grain and cobs, chop sugar cane, tropical grasses, cassava, fine branches and other green products with superior quality.



Advantage:

  1.  • Double function in one single equipment: chop green forage and grind grains;
  2. • Higher durability and resistance;
  3. • Full usage of ground material resulting in higher production performance;
  4. • Easy operation and low maintenance;
  5. • Optional cyclone that make easy ground material bagging;
  6. • Available with base for driving with electric motor, diesel /gasoline and tractor PTO.



Technical Specifications:

Specifications
Required electric motor power up to 3 hp
Production (Kg/h) up to 850
Number of Blades 2
Number of moving hammers 6
Engine electric motor
TECHNICAL FEATURES
Productivity (kg/h)²
MAIZE GRAIN
0,8 mm up to 65
3 mm up to 350
5 mm up to 750
COB
5 mm up to 250
10 mm up to 350
GREEN FODDER
Flat Bottom up to 850

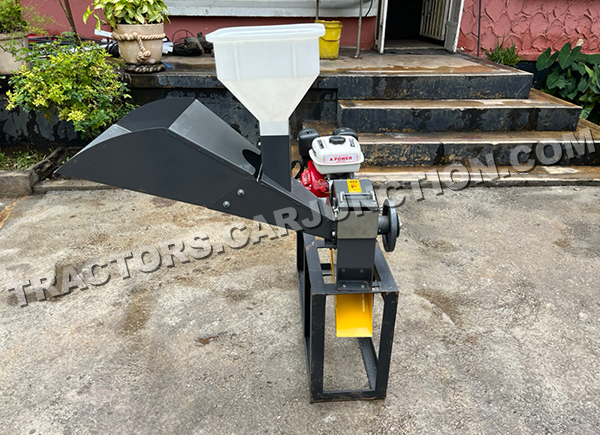

Fodder Chopper With Hammer Mill Image 0

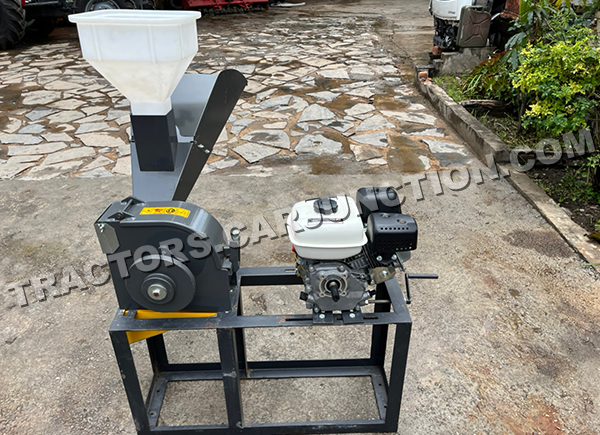

Fodder Chopper With Hammer Mill Image 1

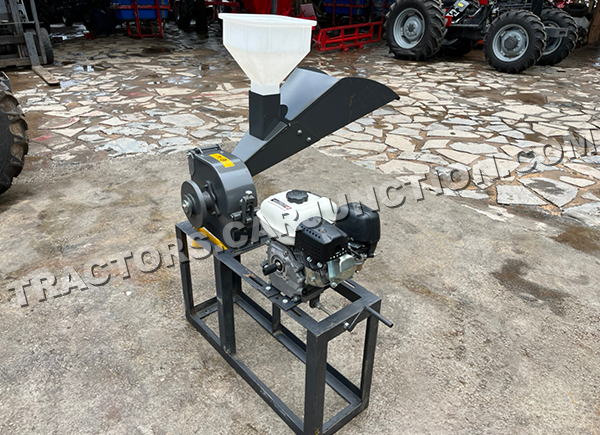

Fodder Chopper With Hammer Mill Image 2
