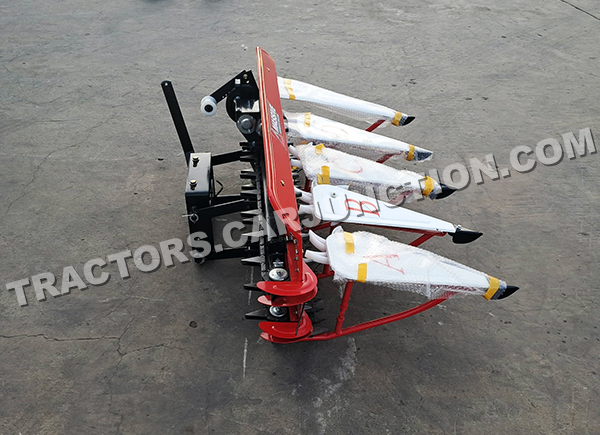

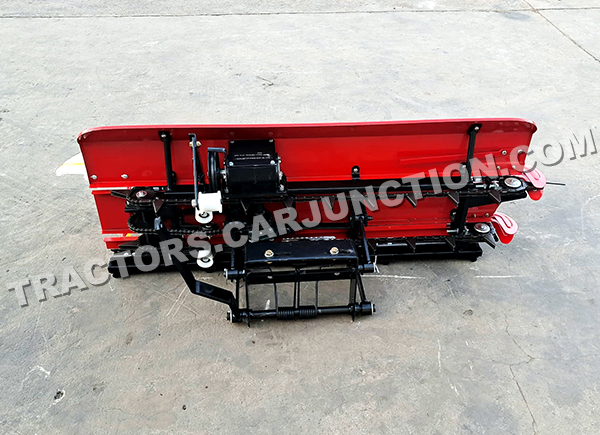

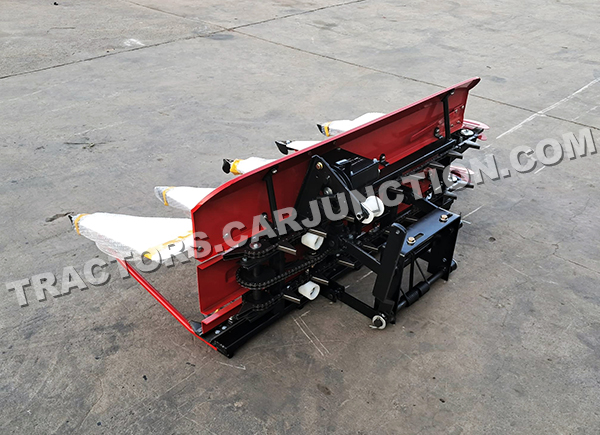

Reaper was specially designed for power tiller. It is featured by its simple and compact structure, good reliability, long service life, easy operation, light weight and high cutting efficiency. It is very suitable for working in wheat & rice field.
- Power required: 12~20HP
- Construction mass: 90kg
- Efficiency?m2/hr.?: 2000?2600
- Cutting width: 1200mm / 1500MM
- Minimum Cutting height: 50mm
|
Type of cutting table
|
Standing-type
|
|
Cutting Width
|
1200mm / 1500mm
|
|
Min cutting height
|
>50mm / >=30~50
|
|
Placing Type
|
Sidewise & Banded Placed
|
|
Productivity
|
2200-2600 M2/h
|
|
Matched diesel Power
|
12~20HP
|
|
Teeth Space
|
127mm
|
|
Running speed of crank
|
550r/min
|
|
Diameter of star wheel
|
280mm
|
|
Working speed
|
2.6 – 3.6 km/h
|
|
Chain speed
|
2.24 m/s
|
|
Number of operator
|
1
|
|
Overall dimensions
|
L 2200 x W 1600 x H 1100 mm
|
|
Total weight
|
215 KG / 230 KG
|
